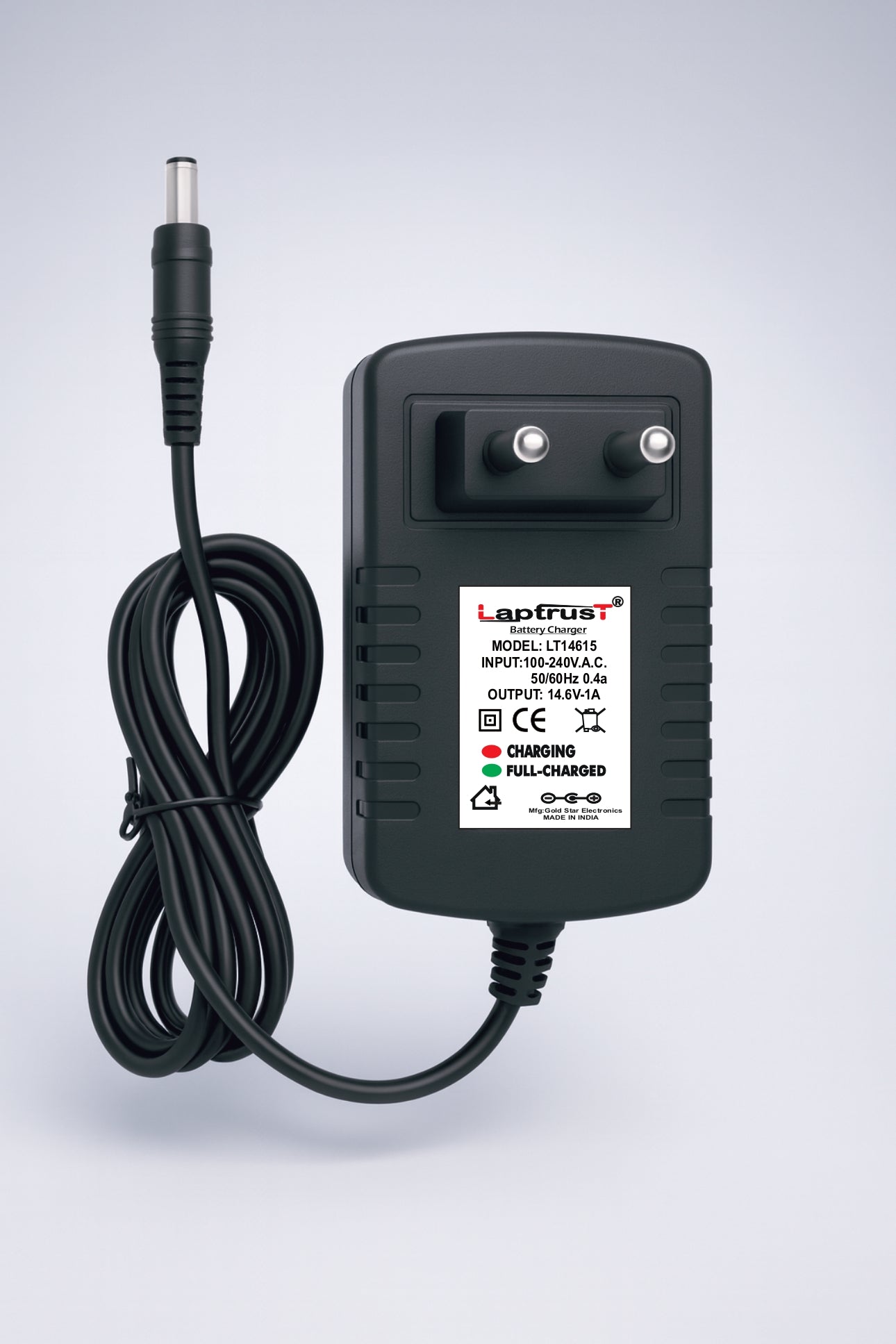

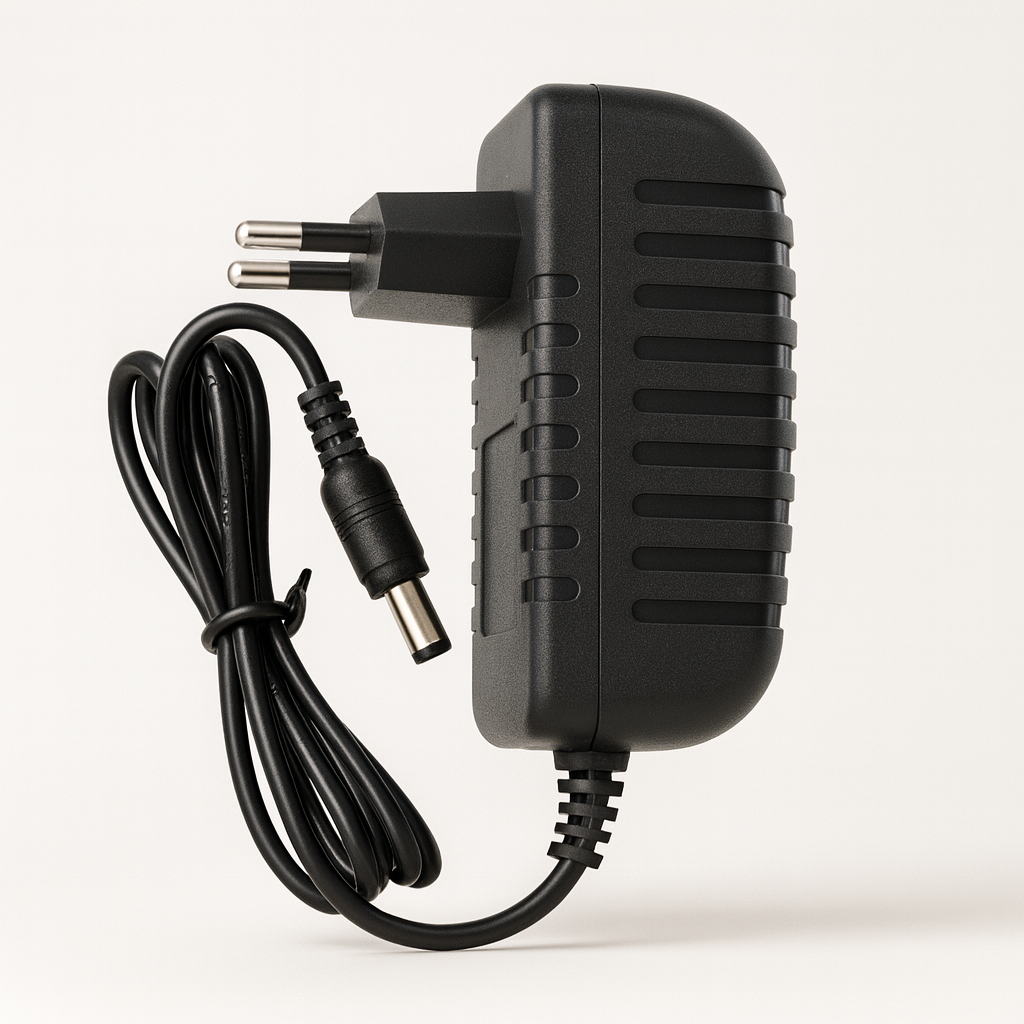

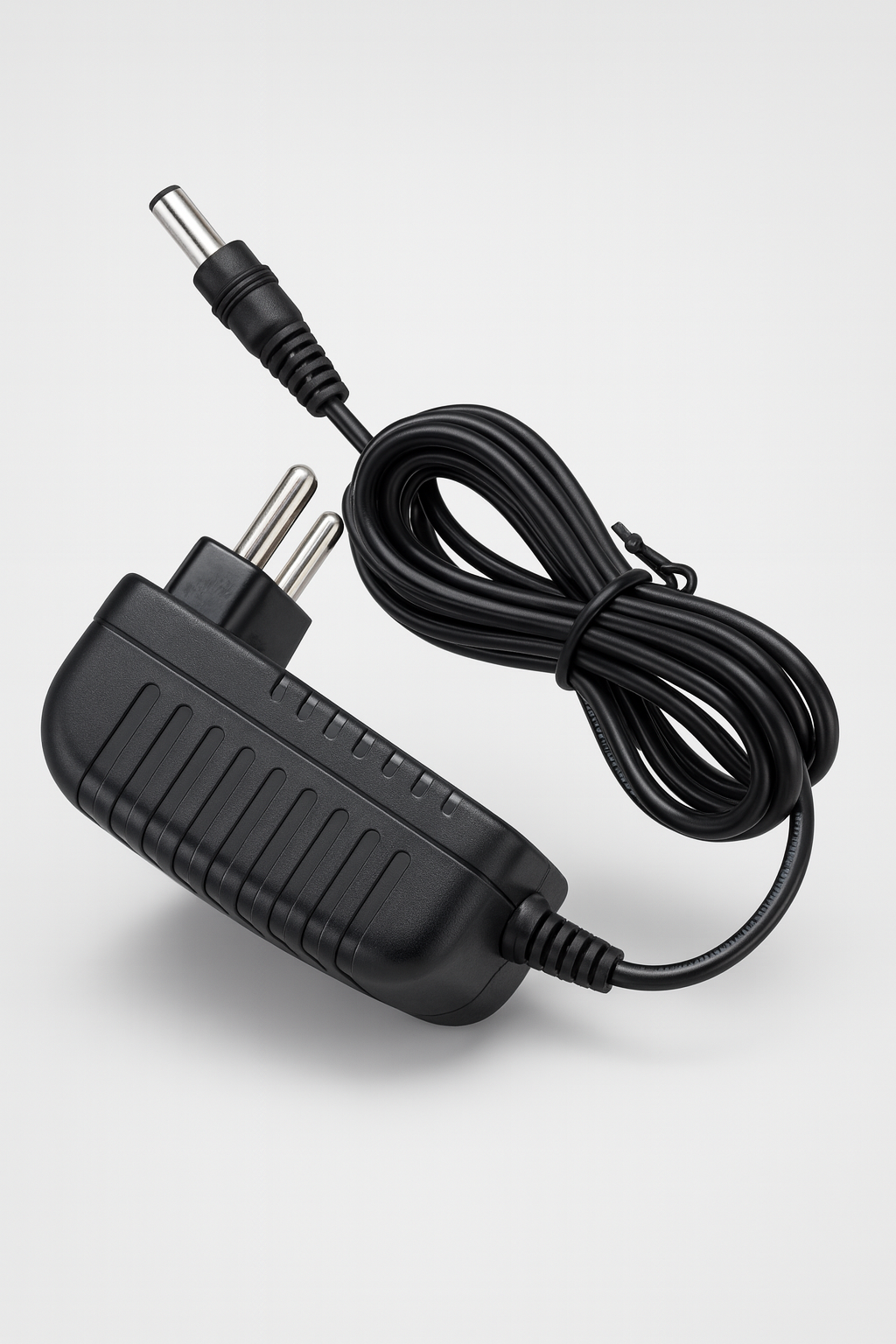

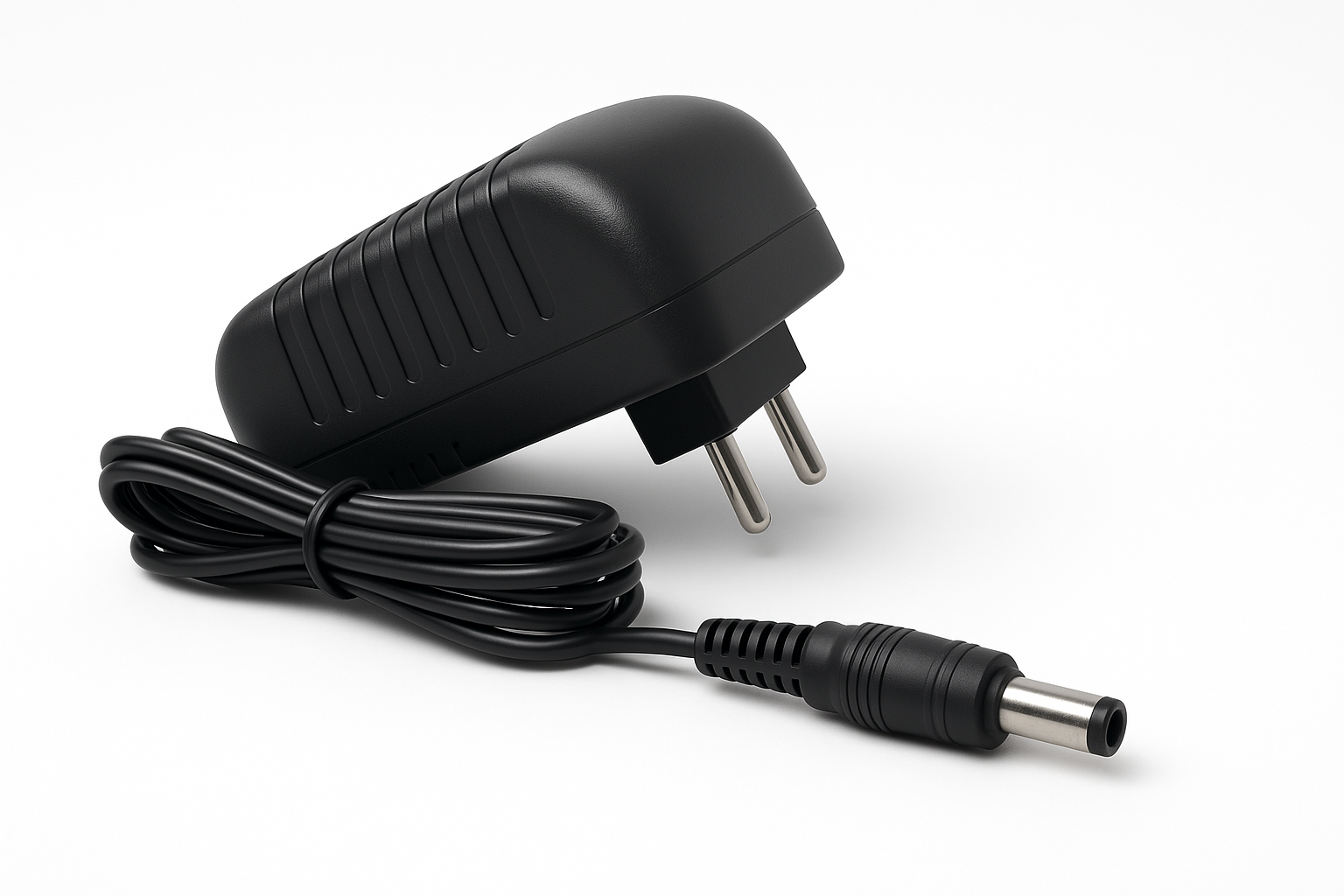

14.6V 1A Lithium Battery Charger – Wall Mounted

The 14.6V 1A Wall-Mounted Lithium Battery Charger is designed for safe and efficient charging of 4S (14.8V nominal) Lithium Iron Phosphate (LiFePO₄) batteries. With its BIS-certified SMPS technology, intelligent CC/CV charging, and compact wall-mount design, it ensures reliability and long battery life for applications like solar kits, LED lights, and small energy storage systems.

⚡ Key Features

• Input Voltage: AC 100–240V, 50/60Hz (universal use)

• Output Voltage: 14.6V DC

• Output Current: 1A (1000mA)

• Charging Mode: CC + CV (Constant Current + Constant Voltage)

• Mounting Style: Wall Plug-in (direct wall socket)

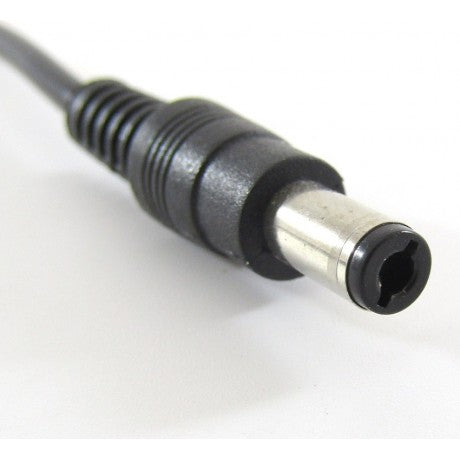

• Connector Type: DC 5.5x2.5mm

• LED Indicator:
  🔴 Red = Charging
  🟢 Green = Fully Charged

🛡️ Safety & Protection

• Over-Voltage Protection (OVP)

• Over-Current Protection (OCP)

• Short Circuit Protection (SCP)


• Fireproof ABS + PC Housing

• BIS / CE / RoHS Certified

📦 Applications

• 4S (12.8V / 14.8V nominal) LiFePO₄ Battery Packs

• Solar Lighting Kits & Energy Storage

• Small E-Bikes, E-Toys & Robotics

• LED Emergency Lights & Power Banks

• Medical & Industrial Portable Devices

📐 Technical Specifications

🎯 Why Choose Our Charger?

• ✅ BIS Certified & Safe for LiFePO₄ batteries

• ✅ Optimized for 4S 12.8V/14.6V packs

• ✅ Compact wall-mounted, easy plug-and-charge

• ✅ Fireproof housing with multiple protections

• ✅ High quality with strict QC & burn-in testing

📦 Package Includes

• 1 × 14.6V 1A Lithium Battery Charger (Wall-Mount)
