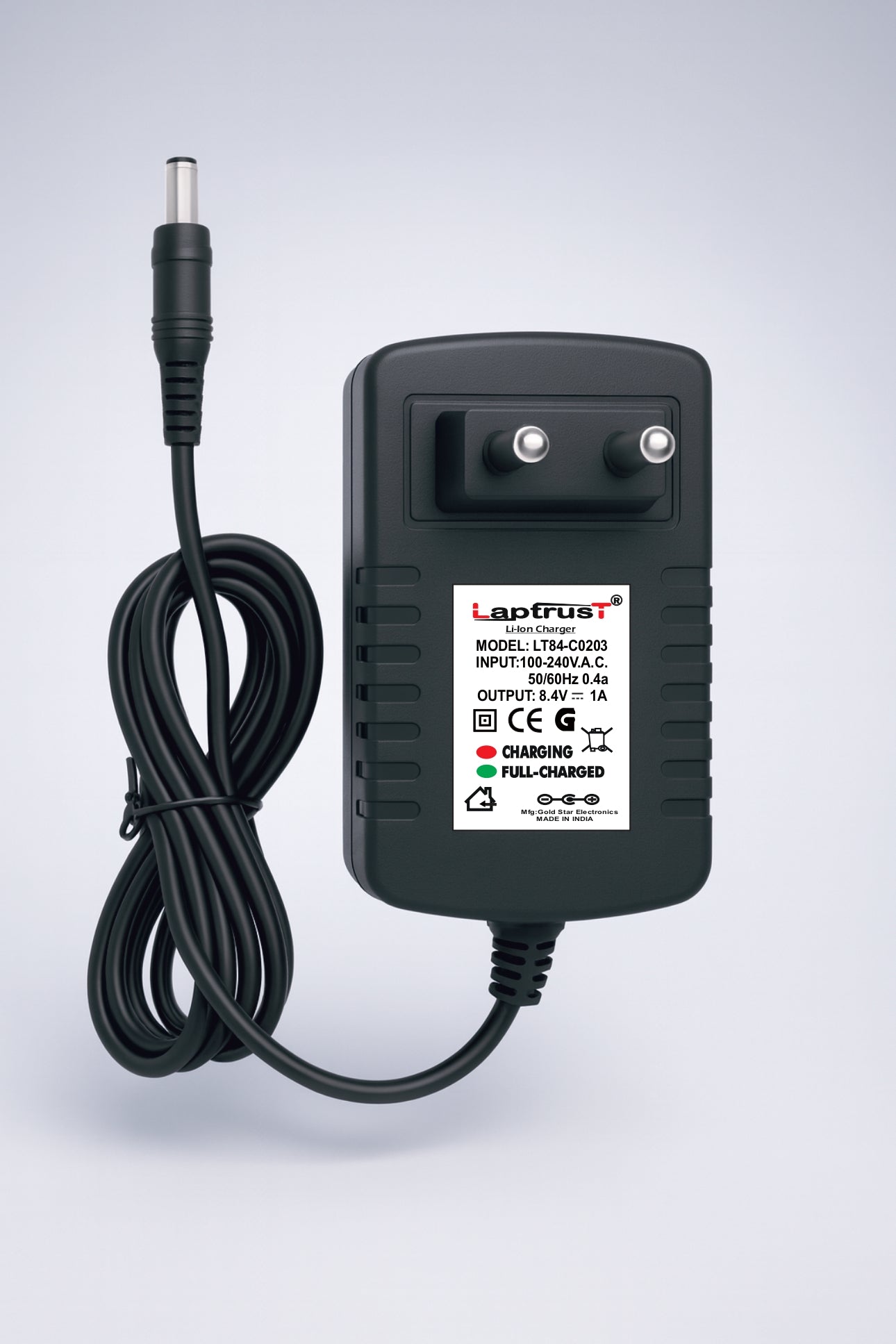

8.4V 1A Lithium Battery Charger - Made In India - Laptrust
8.4V 1A Lithium Battery Charger - Made In India - Laptrust
Couldn't load pickup availability
The 8.4V 1A Wall-Mounted Lithium Battery Charger is a compact and safe charger specially designed for 2S (7.4V nominal) Lithium-ion and Lithium Polymer battery packs. With its BIS-certified SMPS design, intelligent CC/CV charging, and fireproof ABS housing, it ensures reliable charging for small lithium-powered devices.
Key Features
-
Input Voltage: AC 100–240V, 50/60Hz (Global use)
-
Output Voltage: 8.4V DC
-
Output Current: 1A (1000mA)
-
Charging Mode: Constant Current (CC) + Constant Voltage (CV)
-
Mounting Style: Wall Plug-in (direct wall socket use)
-
Connector Type: Standard DC 5.5x2.5mm
-
LED Indicator:
🔴 Red = Charging
🟢 Green = Fully Charged
Safety & Protection
-
Over-Voltage Protection (OVP)
-
Over-Current Protection (OCP)
-
Short Circuit Protection (SCP)
-
Fireproof ABS + PC Housing
-
BIS / CE / RoHS Certified
📦 Applications
-
2S Lithium-ion or Li-Po Battery Packs (7.4V nominal)
-
LED Lights, Torch & Emergency Lamps
-
Small Toys, RC Cars & Drones
-
Portable Speakers & Gadgets
-
DIY & Hobby Projects
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 8.4V 1A Wall-Mount Charger |
| Input Voltage | 100–240V AC, 50/60Hz |
| Output Voltage | 8.4V DC |
| Output Current | 1A |
| Power Output | ~8.4W |
| Efficiency | ≥ 80% |
| Ripple & Noise | ≤ 100mVp-p |
| Operating Temp. | 0°C to 45°C |
| Storage Temp. | -20°C to 85°C |
| Housing Material | ABS+PC Fireproof Plastic |
| Cable Length | 1.2m standard (customizable) |
| Weight | ~150g |
| Certifications |
ISO, CE, RoHS |
Why Choose Our Charger?
-
✅ Safe & Reliable BIS-certified chargers
-
✅ Specifically designed for 2S (7.4V nominal) lithium packs
-
✅ Compact & wall-mounted design for easy use
-
✅ Fireproof housing with multiple safety protections
-
✅ In-house tested for durability & performance
📦 Package Includes
-
1 × 8.4V 1A Lithium Battery Charger (Wall-Mount)
