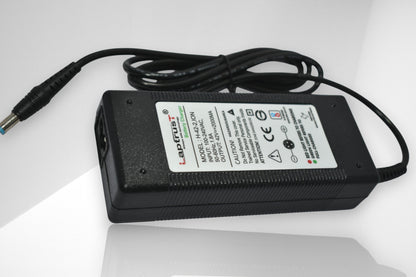

LAPTRUST 42V 2A E-Cycle charger for battery charger

⚙️ 42V 2A E-Cycle Charger  Specification

🔌 Electrical Parameters

• Input Voltage: 100V – 240V AC (50/60Hz)

• Output Voltage: 42V DC

• Output Current: 2A

• Output Power: 84W (42V × 2A)

🔋 Battery Compatibility

• Battery Type: Lithium-ion (Li-ion)

• Nominal Battery Voltage: 36V

• Battery Configuration: 10S (10 cells in series)

• Charging Cut-off Voltage: 42V

🔗 Connector

• Plug Type: 5.5mm x 2.1mm

Safety & Protection

• Over Voltage Protection ✅

• Over Current Protection ✅

• Short Circuit Protection ✅

• Reverse Polarity Protection ✅

• Temperature Protection ✅

📦 Physical Features

• Casing: Fire-retardant ABS/PC plastic body

• Cooling: Passive (no fan)

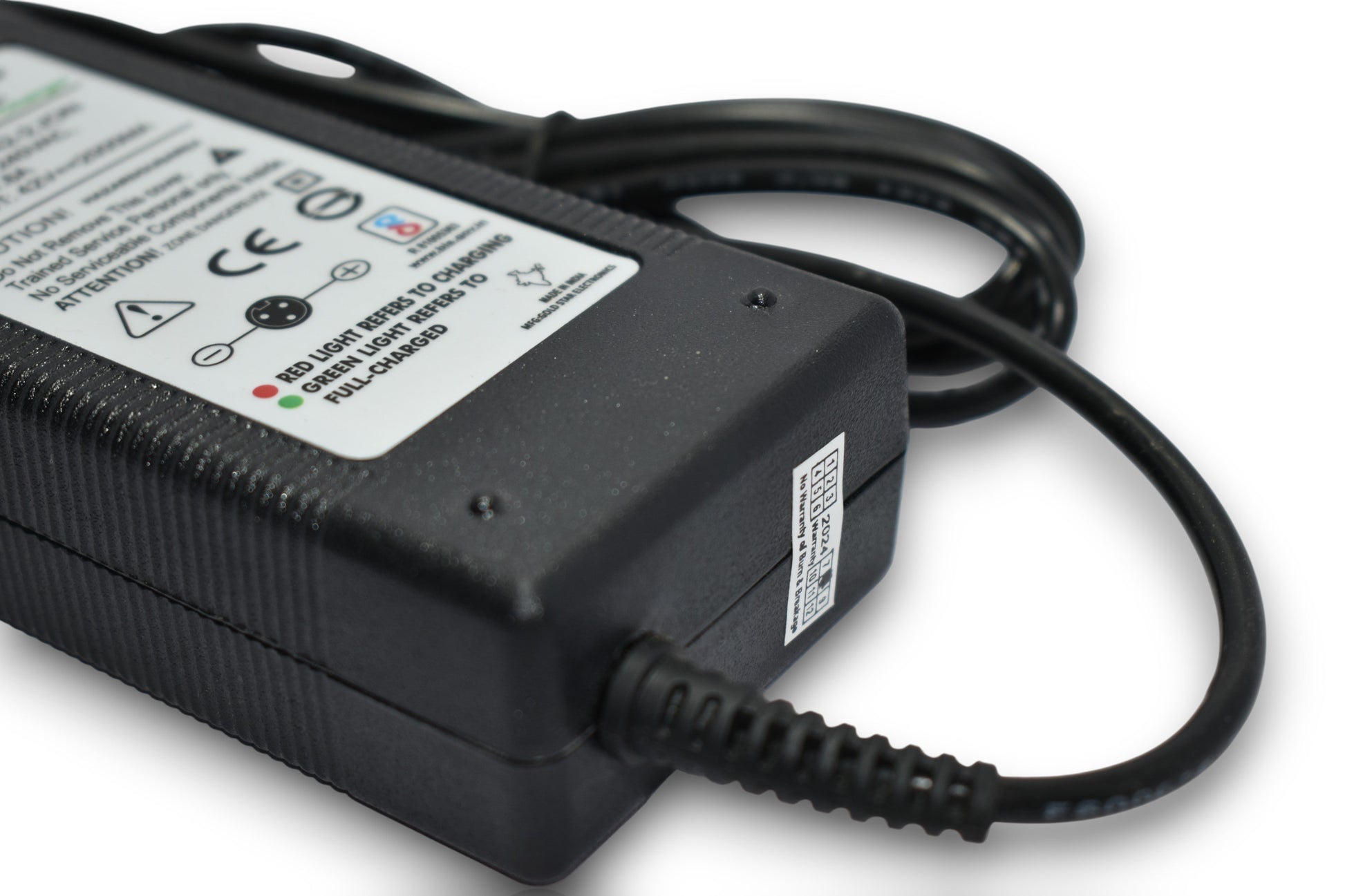

• LED Indicator:

  • Red = Charging

  • Green = Fully Charged / No Load
